Planning Visualisation

Visualise the planning related knowledge in RViz.

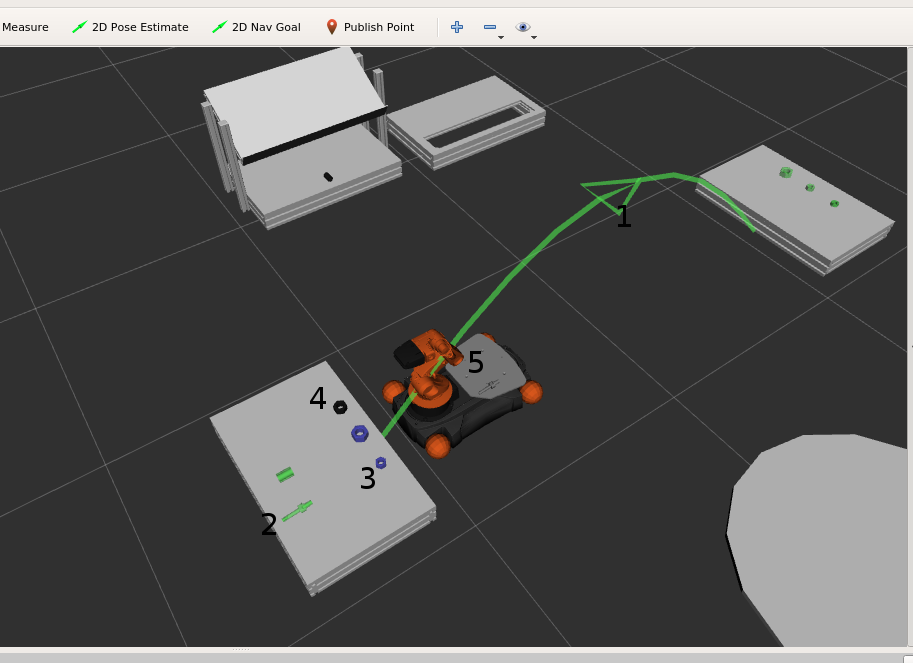

Knowledge base and plan visualised

1. move_base actions according to current plan

2. Unfinished goals (object that needs to be placed) [Green]

3. Objects that need to be picked according to current plan [Blue]

4. Normal objects that need not be interacted with

5. Objects stored on robot’s platform

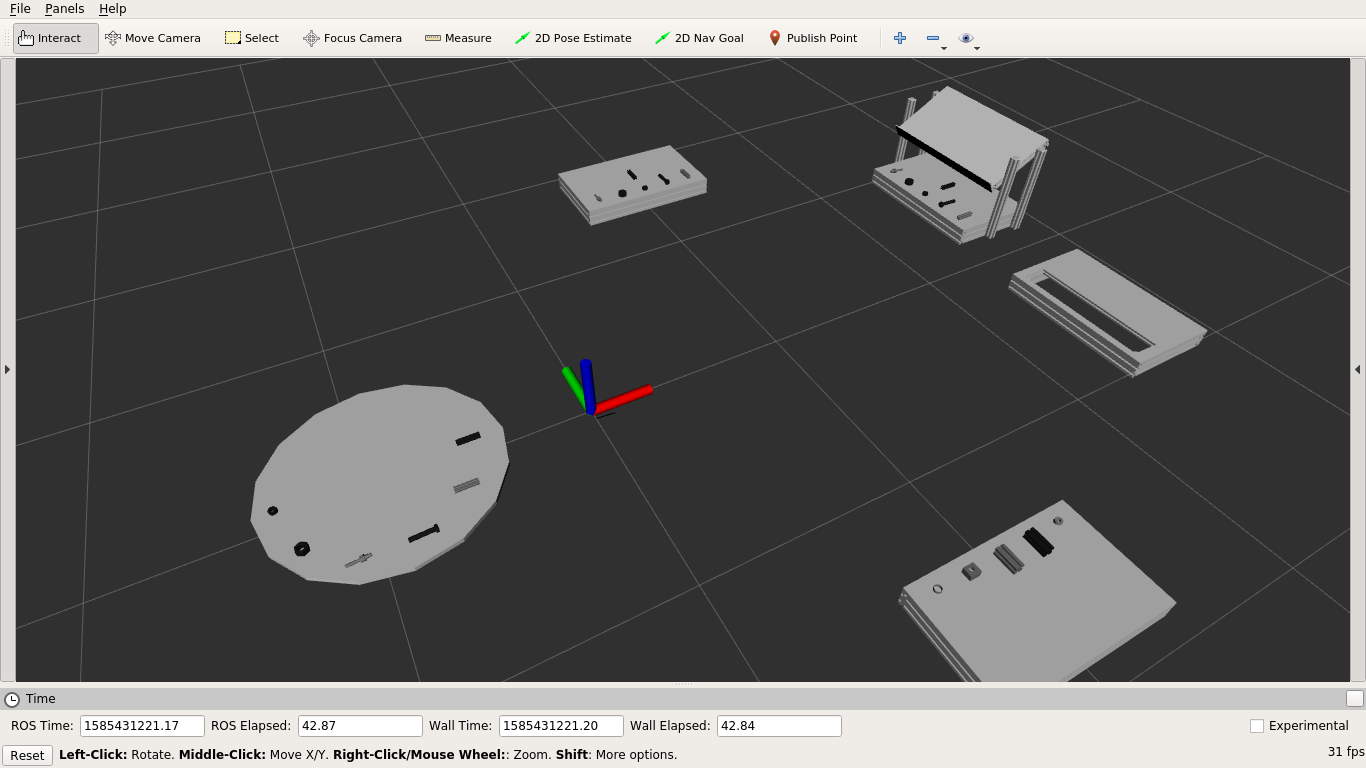

Knowledge base visualised without plan with fake objects

Configuration

Configuration file for generating a marker from a 3D model is defined as follows

m20:
    file_name: 'm20.stl'
    scale: 0.001
    color:
        r: 0.1
        g: 0.1
        b: 0.1
    offset:
        x: 0.0
        y: 0.0
        z: 0.0
        roll: 0.0
        pitch: -90.0
        yaw: 180.0

The marker should be created at the bottom center of the given position. (See mir_planning_visualisation.utils.Utils.get_marker_from_obj_name_and_pos() for more info)

Test

roscore
roslaunch mir_planning_core task_planning_components.launch
roslaunch mir_task_planning upload_problem.launch
rosrun mir_planner_executor planner_executor_mockup
roslaunch mir_planning_visualisation test_planning_visualiser.launch
roslaunch mir_planning_core task_planning_sm.launch
